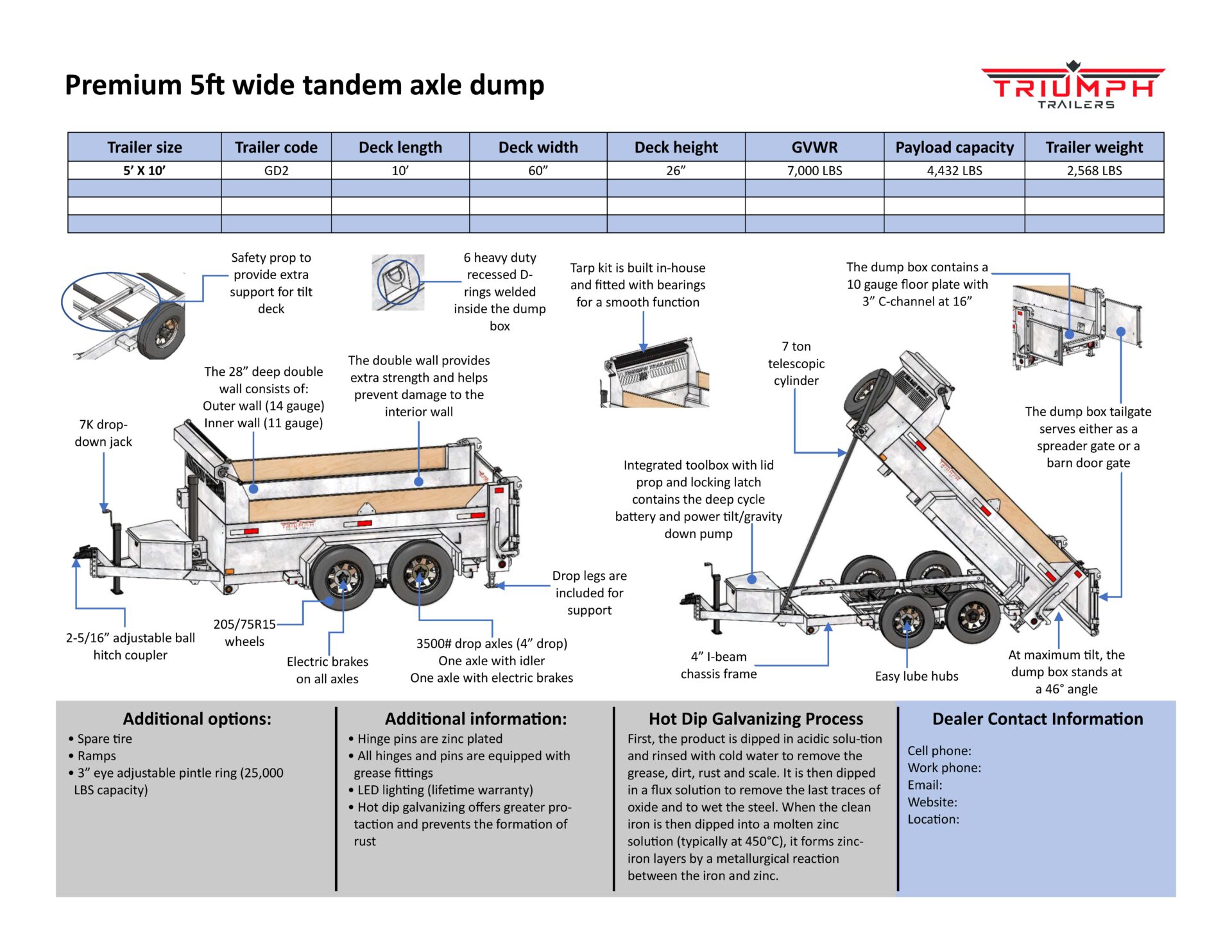

• -1 idler axle 1 electric
• -205/75R15 wheels
• -Radial tires
• -Easy lube hubs
• -All Hinges, pins have grease fittings
• -Hinge pins zinc plated
• -7 ton telescopic cylinder
• -Dumps at 46 degree angle
• -4” drop axles standard
• -7k drop down jack
• -Deep cycle battery
• -Barn door/spreader gate
• -Steel toolbox with locking latch
• -Power up gravity down hydraulic pump
• -4″ C Channel frame
• -3″ C channel floor 16″ centers
• -Double wall for strength and no damage on exterior wall
• -2 5/16″ adjustable coupler
• -LED lights
• -Hot dip galvanized
• -6 heavy duty D-rings recessed inside of dump
• -28″ deep sides
• -11 gauge steel on inner wall and 14 gauge steel on outer wall
• -10 gauge floor
• -Tarp kit built in house, fitted with bearings
• -Safety prop
• -Trailer weight 1050 KG
• -Payload 2120 KG

Options

• -Spare tire and mount
• -Ramps

• -Both Axles with electric brakes
• -225/75R15 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -Dumps at 46 degree angle
• -Undermount cylinder
• -7k drop down jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door
• -Steel toolbox with locking latch
• -power up gravity down pump
• -5″ C Channel frame
• -3″ C channel floor 16″ centers
• -2 5/16″ adjustable coupler
• -LED lights
• -Hot dip galvanize coating
• -20” sides with stake pockets, so they can easily be extended
• -11 gauge steel sides
• -10 gauge steel floor
• -tarp kit built in house, fitted with bearings
• -Trailer weight 1200 KG
• -Payload 3290 KG

Options

• -Spare tire and mount
• -Ramps

• -Axle with brakes
• -225/75R15 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -Undermount cylinder
• -Dumps at 46 degree angle
• -5k A frame jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door
• -Steel toolbox with locking latch
• -Power up gravity down pump
• -4″ C Channel frame
• -3″ C channel floor 16″ centers
• -2 5/16″ adjustable coupler
• -LED lights
• -Hot dip galvanize coating
• -20” sides with stake pockets, so they can easily be extended
• -11 gauge sides and floor
• -Tarp kit built in house, fitted with bearings
• -Trailer weight 830 KG
• -Payload 1520 KG

Options

• -Spare tire and mount
• -Ramps

• -Both axles with electric brakes
• -225/75R15 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -Dumps at 46 degree angle
• -Undermount cylinder
• -7k drop down jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door
• -Steel tool box with locking latch
• -Power up gravity down pump
• -5″ C Channel frame
• -3″ C channel floor 16″ centers
• -2 5/16″ adjustable coupler
• -LED lights
• -Hot dip galvanize coating
• -20” sides with stake pockets, so they can easily be extended
• -11 gauge steel sides
• -10 gauge steel floor
• -Tarp kit built in house, fitted with bearings
• -Trailer weight 1300 KG
• -Payload 3190 KG

Options

• -Spare tire and mount
• -Ramps

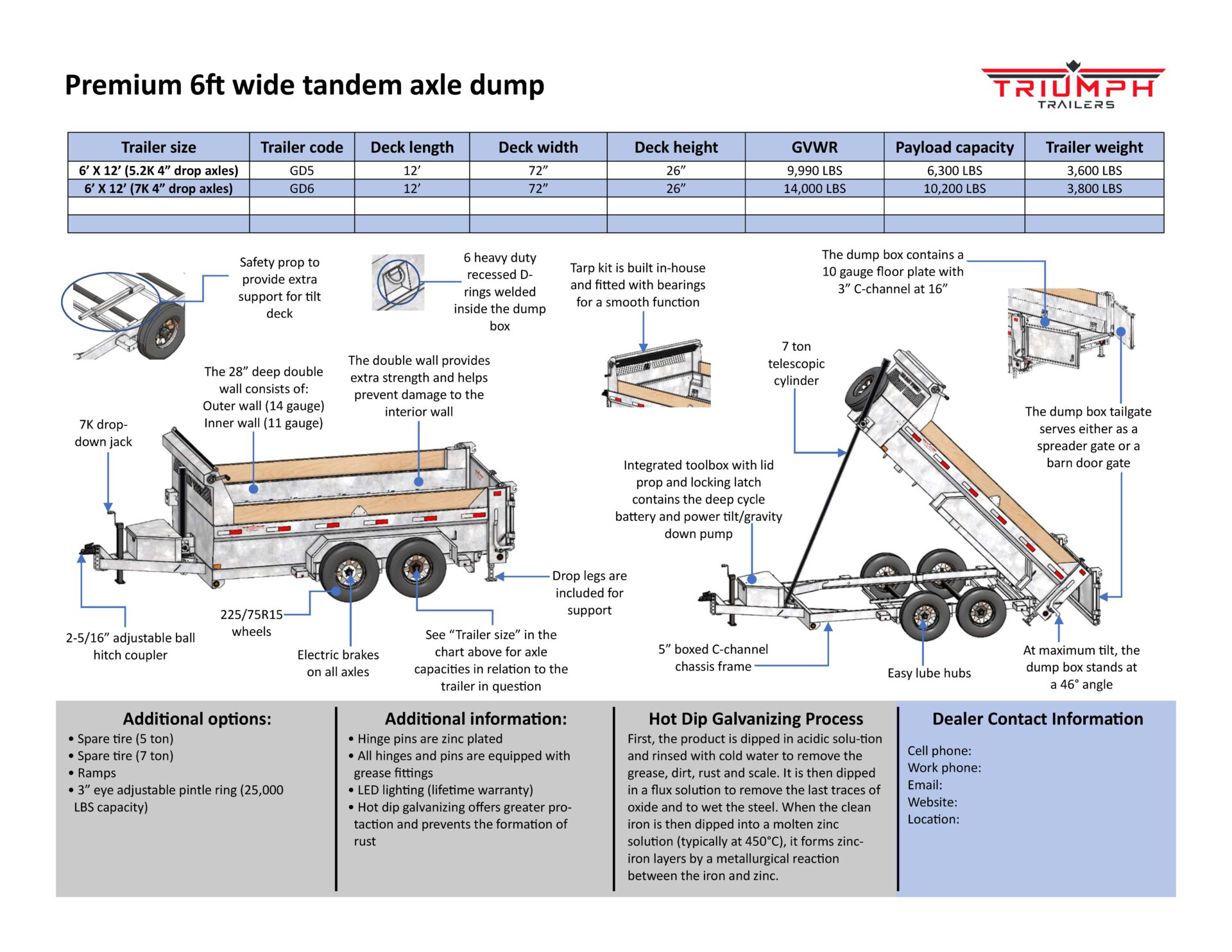

• -Both axles with electric brakes
• -225/75R15 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -7 ton telescopic cylinder
• -Dumps at 46 degree angle
• -4” drop axles standard
• -7k drop down jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door/spreader gate
• -Steel tool box with locking latch
• -Power up gravity down pump/telescopic cylinder
• -5″ C Channel frame
• -3″ C channel floor 16″ centers
• -Double wall for strength and no damage on exterior wall
• -2 5/16″ adjustable coupler
• -LED lights
• -Hot dip galvanize coating
• -6 heavy duty D-rings recessed inside of dump
• -28″ deep sides
• -11 gauge steel on inner wall and 14 gauge steel on outer wall
• -10 gauge floor
• -Tarp kit built in house, fitted with bearings
• -Drop legs
• -Trailer weight 5200# 1480 KG
• -Payload 5200# 3010 KG
• -Trailer weight 7000# 1550 KG
• -Payload 7000# 4800 KG

Options

• -Spare tire and mount
• -Ramps

• -Electric brakes on both axles
• -235/80R16 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -12 ton telescopic cylinder
• -Dumps at 46 degree angle
• -4” drop axles standard
• -12k drop down jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door/spreader gate
• -Steel toolbox with locking latch
• -Power up gravity down pump/telescopic cylinder
• -6″ C Channel frame
• -3″ C channel floor 16″ centers
• -Double wall for strength and no damage on exterior wall
• -2 5/16″ adjustable coupler or pintle
• -LED lights
• -Hot dip galvanize coating
• -8 heavy duty D-rings recessed inside of dump
• -28″ deep sides
• -11 gauge steel on inner wall and 14 gauge steel on outer wall
• -10 gauge floor
• -Tarp kit built in house, fitted with bearings
• -Drop legs
• -Trailer weight 2040 KG
• -Payload 4300 KG

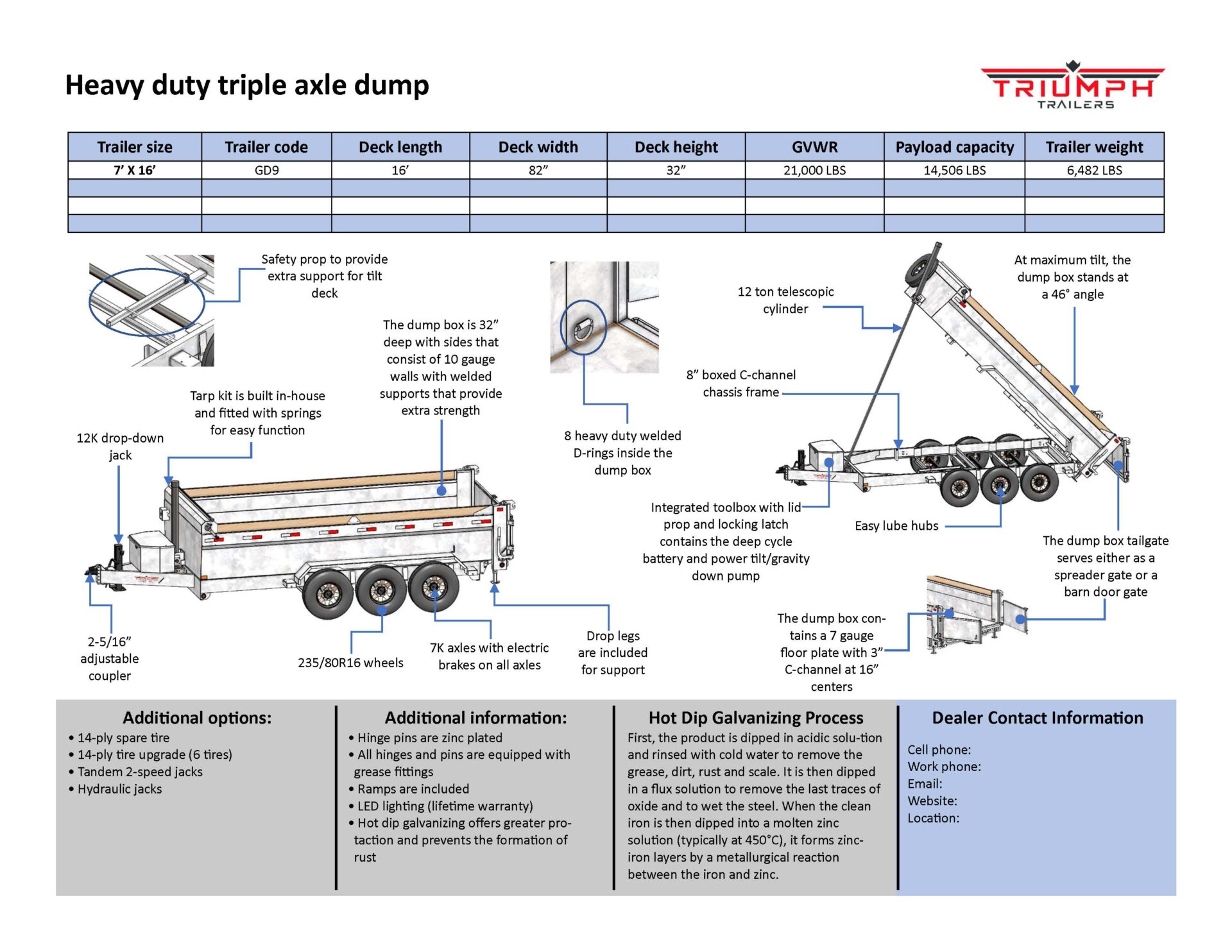

Options

• -Spare tire and mount
• -Ramps

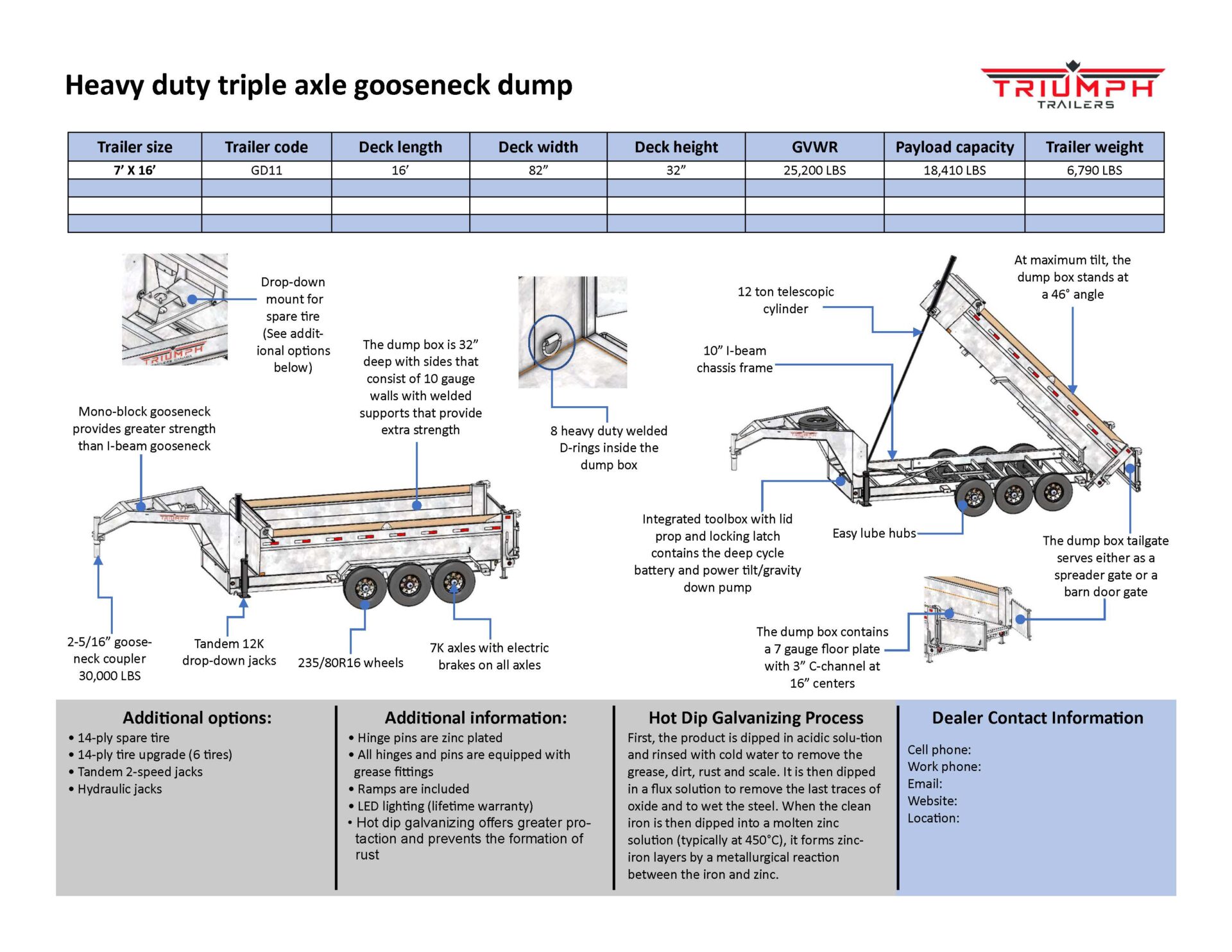

• -Electric brakes on three axles
• -235/80R16 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -12 ton telescopic cylinder
• -Dumps at 46 degree angle
• -12k drop down jack
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door/spreader gate
• -Steel tool box with locking latch
• -Power up gravity down pump/telescopic cylinder
• -8″ C Channel frame
• -3″ C channel floor 16″ centers
• -2 5/16″ adjustable coupler or pintle
  -LED lights
• -Hot dip galvanize coating
• -8 heavy duty D-rings inside of dump
• -48″ deep sides
• -10 gauge walls with welded supports for extra strength
• -7 gauge floor
• -tarp kit built in house, fitted with springs to cover your load easily
• -Drop legs
• -Ramps included
• -Trailer weight 2940 KG
• -Payload 6580 KG

Options

• -Spare tire and mount
• -14 ply tire upgrade (6 tires)
• -14 ply spare

• -Electric brakes on three axles
• -235/80R16 wheels
• -Radial tires
• -Easy lube hubs
• -Hinge pins zinc plated
• -12 ton telescopic cylinder
• -Dumps at 46 degree angle
• -Tandem 12k drop down jacks
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door/spreader gate
• -Large steel toolbox with prop and locking latch
• -Power up gravity down pump
• -Telescopic cylinder

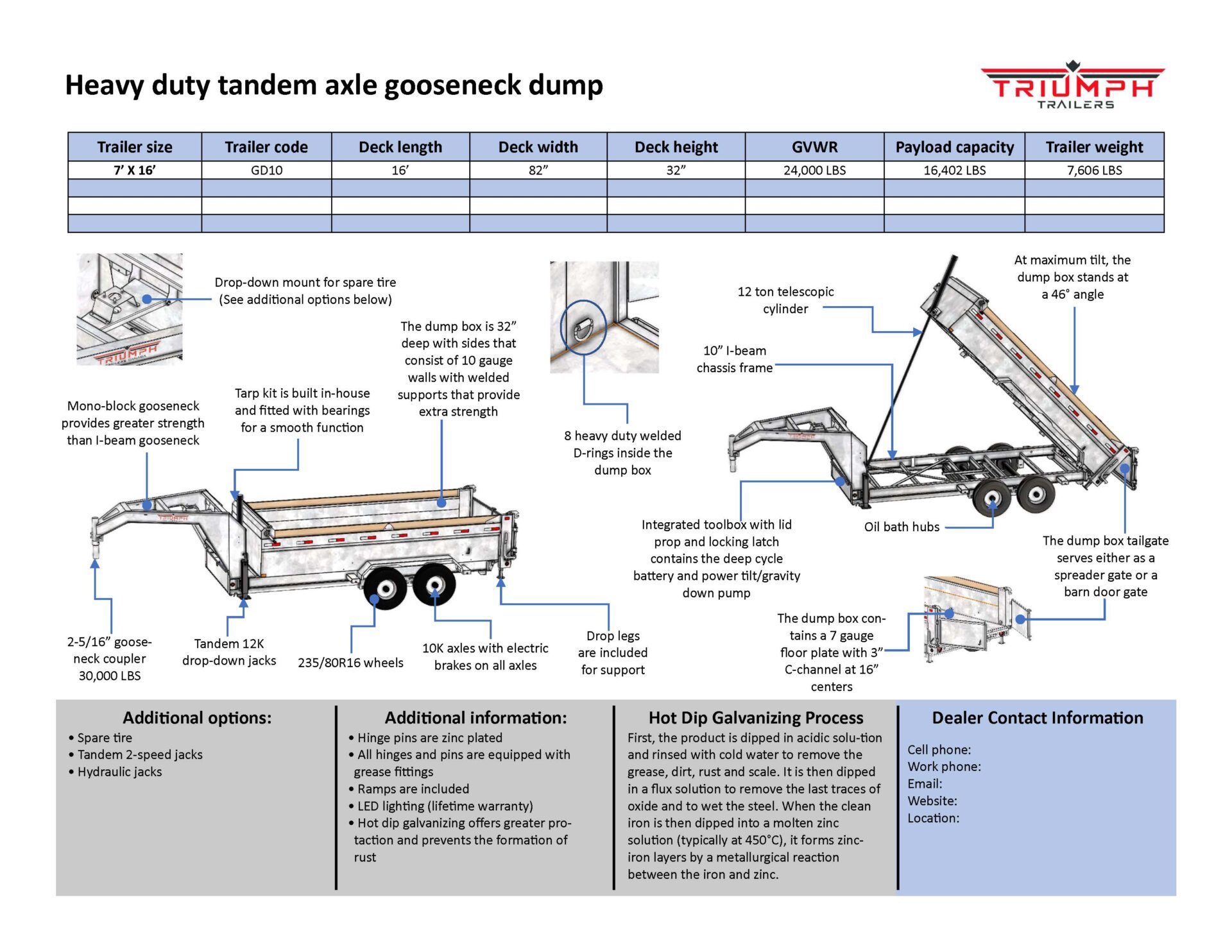

• -Mono block gooseneck (stronger than standard I beam)
• -10″ I beam frame
• -3″ C channel floor 16″ centers
• -2 5/16″ gooseneck coupler
• -LED lights
• -Hot dip galvanize coating
• -8 heavy duty D-rings inside of dump
• -36″ deep sides
• -10 gauge walls with welded supports for extra strength
• -7 gauge floor
• -Tarp kit built in house, fitted with bearings
• -Drop legs
• -Ramps included
• -Trailer weight 3180 KG
• -Payload 8275 KG

Options

• -Spare tire and mount
• -14 ply tire upgrade (6 tires)
• -14 ply spare

• -Electric brakes on both axles
• -Radial tires
• -Oil bath hubs
• -Hinge pins zinc plated
• -12 ton telescopic cylinder
• -Dumps at 46 degree angle
• -Tandem 12k drop down jacks
• -All Hinges, pins have grease fittings
• -Deep cycle battery
• -Barn door/spreader gate
• -Large steel toolbox with prop and locking latch
• -Power up gravity down pump
• -Telescopic cylinder
• -Mono block gooseneck (stronger than standard I beam)
• -10″ I beam frame
• -3″ C channel floor 16″ centers
• -2 5/16″ gooseneck coupler
• -LED lights
• -Hot dip galvanize coating
• -8 heavy duty D-rings inside of dump
• -48″ deep sides
• -10 gauge walls with welded supports for extra strength
• -7 gauge floor
• -Tarp kit built in house, fitted with bearings
• -Drop legs
• -Ramps included
• -Trailer weight 3480 KG
• -Payload 7430 KG

Options

• -Spare tire and mount
